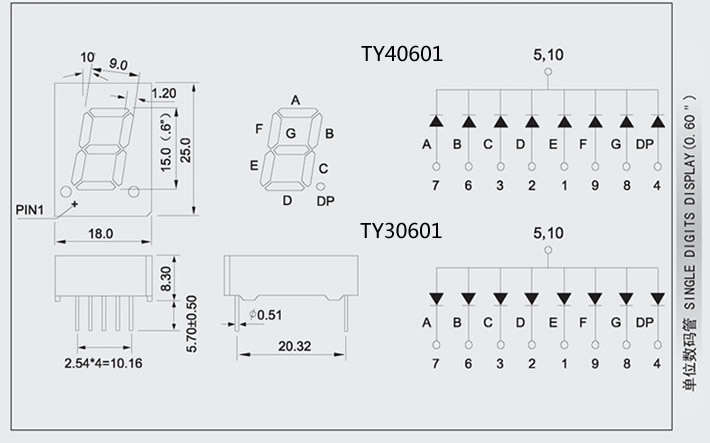

TY30601/TY40601
Specifications:
①Digit height: 0.60 inch
②Dimensions: 18.00 x 25.00 x 8.30 mm
③Digit quantity: one piece
④Available Emitting color: high bright red/yellow green/yellow/amber/high bright blue/high bright white/pure green
⑤Surface color: black/gray (white epoxy)
⑥Epoxy colors: red, milky, blue, green and more
⑦Polarity: common anode/common cathode
⑧Operating temperature range: -20+60 degree Celsius
Features：
①High luminous intensity output
②Low voltage and current operating
③Ultra-low power consumption
④Solid-state LED chip based
⑤Long life-span
⑥Easy mounting on printed circuit board and sockets
⑦IC compatible
⑧Certificates: RoHS and SGS
Application：
①Audio equipment or instrument panels
②General use for digital indicators
③Multimedia product
④Bank exchange rate display
⑤LED clock display
⑥D(zhuǎn)isplay for gas station and other various display areas of equipment/machine
